GS insPIRe CH Freezer Panels

Polyisocyanurate Freezer Panels

The GS insPIRe®  CH freezer panels are designed for walls and ceilings in cold rooms and freezers, and other facilities with controlled temperature and humidity.

Product of

The freezer panels can be used to erect free-standing buildings and make cold rooms or freezers inside existing buildings. The panels can be mounted both vertically and horizontally as single and multi-span elements.freezer panels

  1. The profiling of the metal cladding makes the walls look aesthetically pleasing
  2. Sealing compound applied at the construction site
  3. A large radius of profiling of the lock ensuring the integrity of the protective coatings
  4. Contoured edges facilitate assembly and increase thermal insulation
  5. Double lock connecting the panels guaranteeing high fire tightness properties
  6. Labyrinth core contact eliminating thermal bridge
  7. Core made of rigid PIR foam with very good thermal insulation and fire properties

Technical Information

Type of core Rigid polyisocyanurate foam (PIR)
Declared heat transfer coefficient λD [W/m*K] 0.022
Thickness [mm] 100 120 160 180
R value 25.8 31.5 40.6 51.6
*Mass [kg/m^2] 12.6 13.4 15.0 16.6
Maximum length [m] 16.5
Total width [mm] 1020 / 1160 (for thickness ≥ 60mm and profiles L, M, and F)
Modular width [mm] 1000 / 1140 (for thickness ≥ 60mm and profiles L, M, and F)

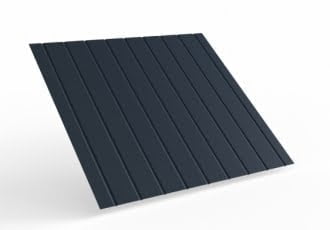

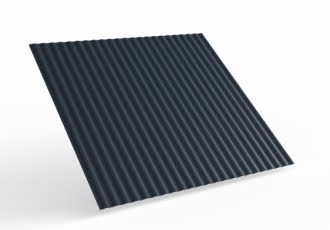

**Exterior lining profiles for 1000 mm modular widths L - Linear, M - Microfiltered, F - Wavy, R - Grooved
**Exterior lining profiles for 1140 mm modular widths L - Linear, M - Microfiltered, F - Wavy
Interior lining profiles L - Linear, P - Flat
**Standard exterior lining colors for 1000mm modular widths RAL 9002 RAL 9006 RAL 9007 RAL 9010
**Standard exterior lining colors for 1140mm modular widths RAL 7016 RAL 9002 RAL 9006 RAL 9007
RAL 9010
**Standard interior lining colors RAL 9002 RAL 9010
***Fire resistance classification for MAX panels EI 30
Reaction to fire Bs-1, d0
Fire spread Non Fire Spreading
Certificates, approvals, seals of approval DWU CE according to EN 14509 - Certificate of Business Continuity EN 14509 - Fire resistance classification - Hygienic Certification

* Weight per 1 m b. for lining 0.5 / 0.5 mm (width for 1140). Detailed masses in files for download.

** Available colors depend on lining thickness

*** Conditions in accordance with the fire resistance classification. Details of the division of fire resistance in the horizontal and vertical arrangement in Declaration of performance

Profiles

Downloads

DoP(EN), GS PIR CH, nr.2020_2

Leaflet_Sandwich Panels
