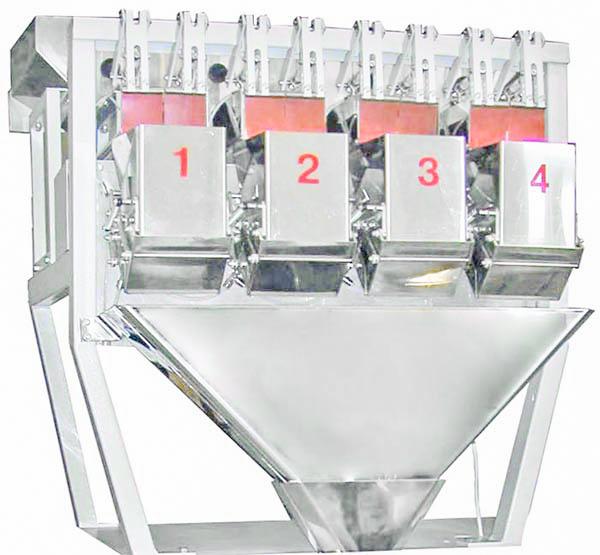

The V2 Linear Weigher consists of based on a frame storage hopper and from one to four lane flows. Each flow is equipped with a vibrating tray, shutter, and weight measuring system with a basket fitted on a load cell.
The V2 is used for automatic dosing of loose products such as seeds, nuts, corn curls and so on.
Up to 20 dose/min.
Technical Information
| Attribute | Value |
|---|---|
| Max speed, dose/min | 20 (per stream) |
| Weighing range, g | 0.01-0.5 |
| Weight sensitivity, g | 0.1 |
| Dosing accuracy, up to % | 1-2 of product unit |
| Power supply | 1 phase, 220 V, 50 Hz |
| Air consumption, no more, Nl/min | 100 (for one stream) |
| Working pressure, MPa | 0.6 |
| Dimensions (LxWxH), no more, mm | 1000х1200х1000 |
| Weight, kg (max) | 60 |
Options for Linear Weigher
- Level Sensor
Products
Features & Benefits of the V2 Linear Weigher
- All parametric control of the linear weigher is carried out by PLC and displayed on LCD display
- PLC is capable to store up to 30 dosing programs therefore minimizing downtime while program switching
- While dosing the controller is to adjust vibration amplitude of a tray to ensure max productive capacity at the set accuracy.
