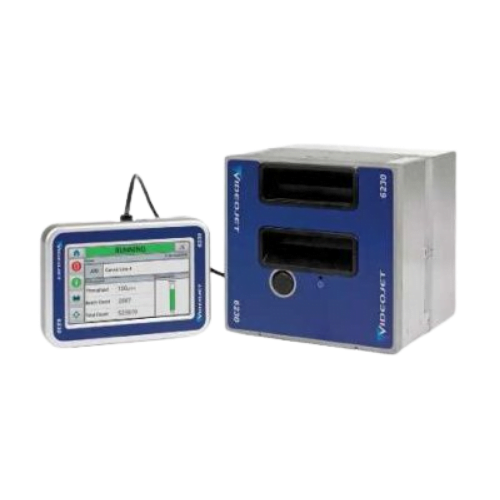

Videojet 6230: Thermal Transfer Printer

Achieve increased reliability and improved code quality with the Videojet 6230 Thermal Transfer Printer (TTO). An airless printer for the most versatile production line installation, the 6230 features built-in code assurance and simple usability to help reduce flexible packaging coding error.

Product of

  • Code assurance comes as standard in the Videojet 6230 printer when using templates created by CLARiSOFT™ or VideojetConnect™ Design software. These simple code creation tools help reduce operator interactions resulting in fewer user errors and unnecessary product waste and rework. Precise ribbon control with bidirectional stepper motors minimizes gaps between codes and reduces ribbon wastage. Simple ribbon path that ensures fast changeovers and a more efficient operation.
  • Simple change ribbon cassette, with pushbutton lock mechanism, allows for fast and easy ribbon replacement.
  • Offers high-quality codes up to speeds of 150 packs / minute.
  • Single design printhead for intermittent or continuous printing.
  • Compact design easily integrates into most production lines.
  • WYSIWYG print preview allows operators to confirm the correct code is selected.
  • Real-time clock stamp avoids date errors.
  • Intuitive tablet-like 5” touchscreen controller with CLARiTY™ Codes: EAN8, EAN13, UPCA, UPCE, QR.

Technical Information

Width / resolution: 32 mm, 200 dpi (8 dots/mm)
Print Area, mm:
  • Continuous mode: Max. 32mm x 100mm (1.26” x 3.93”)
  • Intermittent mode: Max. 32mm x 47mm (1.26” x 1.85”)
Print Speed, mm/sec
  • Intermittent: 50mm/sec. to 300mm/sec. (2.0”/sec to 11.8”/sec)
  • Continuous: 40mm/sec. to 500mm/sec. (1.6”/sec to 19.7”/sec)
Ribbon length: 700
Working temperature, °С: 32°-104°F (0°- 40° C)
Power supply: 100-240 VAC, 50/60Hz, 24V (120W) 5A
External Communications:
  • Available with Bluetooth® connectivity
  • the 6230 printer can be controlled from an Android phone simplifying operator interaction with the production line
  • USB memory stick, ethernet, RS232, ASCII and binary communications
Remote Coder Configuration Software:
  • CLARITY™ Configuration Manager(included)
  • Videojet Connect™ Design
